Protect teachers and students
Promote Safe and Engaging Learning Environments: Provide Your Classrooms with Extra Layers of Protection against Common Health Risks
Enhanced eye comfort
RM6503A displays come with a low blue light filter and flicker-free technology for reduced eye strain and a comfortable viewing experience. Anti-glare screens additionally ensure that display content is seen clearly from anywhere in the classroom.
More than just a whiteboard
Teach using EZWrite, a powerful and intuitive whiteboard packed with classroom tools for all subjects. EZWrite 6 lets you save whiteboard sessions to continue giving lessons at a later time.
Streamline class management

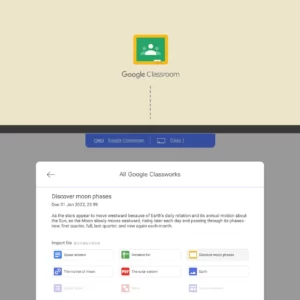

With Google Classroom integration, you can easily import lesson materials and invite students to the EZWrite Web whiteboard. Post announcements and homework to the Stream for your class right from the BenQ Board.

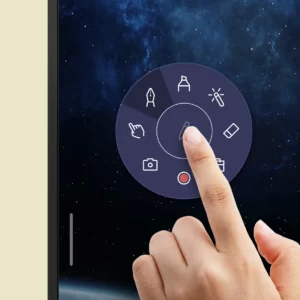

The built-in Floating Tool lets teachers write on top of any app, website, document, or image. Annotate over content displayed from any connected Windows, Mac, iOS, iPad OS, Android, or Chrome OS device.

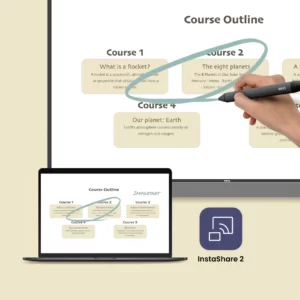

Enjoy the flexibility of teaching from anywhere in the room. With InstaShare 2, you can easily share your laptop, tablet, or smartphone screen onto the BenQ Board. Control your device right from the display to navigate lesson material without having to go back and forth.

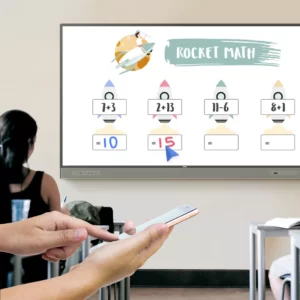

Turn your personal device into a remote control teach from anywhere in the room. Manage screen sharing sessions, navigate your BenQ Board, adjust the volume, use the voice assistant, and access any app on the display.
All Specifications
Panel
Screen size :65"
Resolution: UHD 3840 × 2160 pixels
Active area: 1428.5 × 803.5 mm
Aspect ratio: 16:9
Brightness without glass (typical): 400 nits
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 30,000:1
Color depth: 10-bit
Response time: 8 ms
Color gamut: 72% NTSC
Operation hours: 18 hours / 7 days
Light life (typical): 50,000 hrs
Orientation: Landscape
Glass
Hardness: 9H tempered
Germ-resistant technology: Nano-ionic silver
Anti-glare coating: Yes
Touch screen
Touch points: up to 40
Touch response time: < 10 ms

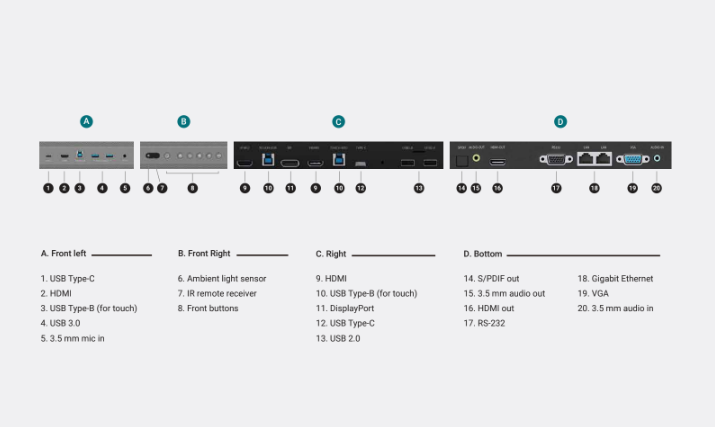

Connectivity
HDMI (in | out): 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort (in | out):1 × 1.2a | No
VGA (in | out): 1 | 0
3.5 mm Line in (1): Mic × 1
3.5 mm Line in (2): PC Audio × 1
3.5 mm Line out: Earphone × 1
SPDIF (in | out): 0 | 1 (optical)
USB-A: 2 × USB 2.0 + 5 × USB 3.2 Gen 1 × 1
USB-B (for touch): 3 × USB 3.2 Gen 1 × 1
USB-C: 1 × USB 3.2 Gen 1 × 1 + 1 × USB 3.2 Gen 1 × 1 (PD 65W)
Slot-in PC (OPS): 1
Ethernet LAN: 10 / 100 / 1000 Mbps (Android),
10 / 100 / 1000 Mbps (OPS) × 2
Platform System
CPU (No of Cores):Octa-core (8)
CPU: A73 × 4 + A53 × 4
GPU: G52 MP8
Memory | Storage: 8GB I 32GB
OS: Android 11.0
Built-in peripherals
Microphone: 8
Speaker: 2 × 16 W
Wi-Fi: USB wireless adapter (optional)
Physical
Shipping dimensions(W x H x D) : 1640 ×1040 × 200 mm
(64.6 × 40.9 × 7.9 inch)
Weight(product I shipping): 41.0 kg | 54.0 kg
(90.3 lbs | 119.0 lbs)
Mount (screws): VESA 600 × 400 mm (4 × M8 × 25L)
Pen Tray: 1
Power
Power : AC 100-240V 50/60Hz
Maximum power consumption: 420 W
Standby power consumption: <0.5 W
Typical power consumption: 118.1 W
Environment
Operating temperature: 0°C ~ 40°C
Storage temperature: -10°C ~ 60°C
Storage humidity: 10% ~ 60% RH Non-Condensing
Operating humidity: 20% ~ 80% RH Non-Condensing
Accessories (in Box)
Cables: 1 × VGA (3m), 1 × HDMI (3m),
1 × USB-B for touch (3m),
1 × USB-C (1.5m)
Wall mount: 1
Stylus: 2
Remote control: 1
Accessories (optional)
OPS Model i5000: i5, 11th Generation
Connectivity: HDMI, DisplayPort, USB Type C x 1, USB 2.0 x 2, USB 3.0 x 2, Intel Dual Wifi (2.4Ghz and 5 Ghz) Bluetooth 4.0, Audio IN / OUT, HDMI OUT and LAN
Memory (RAM): 4GB DDR4 Expandable upto 32GB support
Warranty Terms: 3 years
Compliance: BIS, ISO, RoHS, CE, FCC
Graphics: On board Intel UHD Graphics
LAN: 10/100/1000 Gigabit LAN
Primary Storage (ROM): M.2 128gb to 1TB SSD
Secondary Storage: 2.5" 1TB to 2TB (HDD / SSD)
OS: Windows 10 Professional
Certifications: CE, FCC, ROHS, ISO 9001 : 2015, ISO 14001:2015, ISO 45001:2018
